Ultimate Noise Rejecting Directional Antenna

Ultimate Noise Rejecting Horn Antenna

UltraHorn™ TP antennas are highly directional scalar horn antennas. They offer all the benefits of scalar horns: ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.

uh ptp cover 1 new

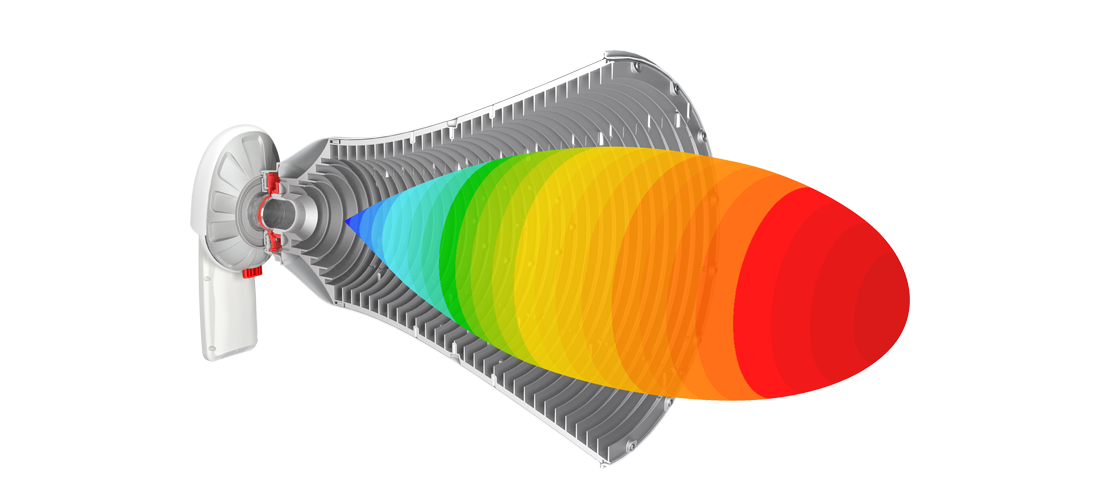

Unique Beam Without Side Lobes

UltraHorn™ TP antennas are truly directional antennas: signal is focused only to a main beam without any side lobes. Precise radiation patterns of UltraHorn™ TP antennas allow you to create long links in high noise environment with unprecedented performance. The optimal beamwidth makes aiming very simple compared to other point-to-point antennas.

UH 5 24 TPA PAF vyzarovak

Ultimate Noise Rejection

UltraHorn™ TP antennas do not have side lobes which allows them to reject noise. Side radiation is directly related to noise: radios transmit and also receive interference from unwanted directions. Side lobes from most mainstream point-to-point antennas are huge, sometimes almost half the size of the main lobe and thus having a huge impact on overall performance. UltraHorn™ TP antennas receive significantly less noise allowing
them to achieve amazing performance in noisy environments.

Radiation Patterns

Zero Loss

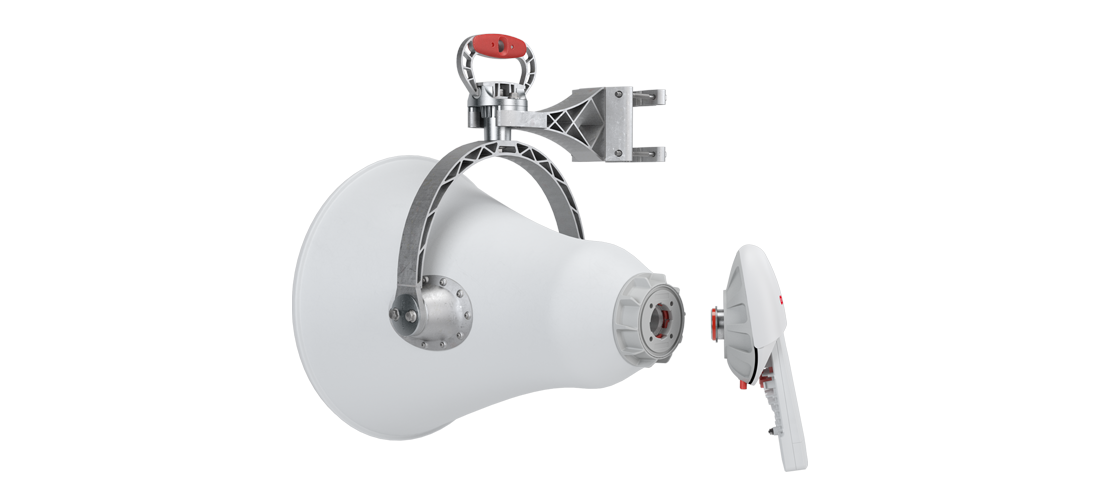

UltraHorn™ TP Antennas feature our industry changing TwistPort™ connector, a patent pending quicklocking waveguide port.
There are no coaxial RF connectors or RF cables anymore that makes TwistPort™ virtually lossless connector.
Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!



How far can I get with this antenna? There is no simple answer to this question. Easy Link calculator below will help you find the answer.

For a more precise link calculation, please use our.

Metric Imperial

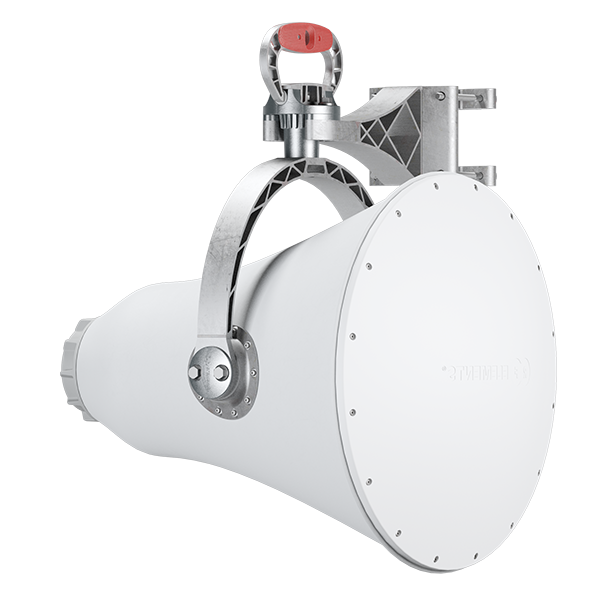

UH 5 24 left

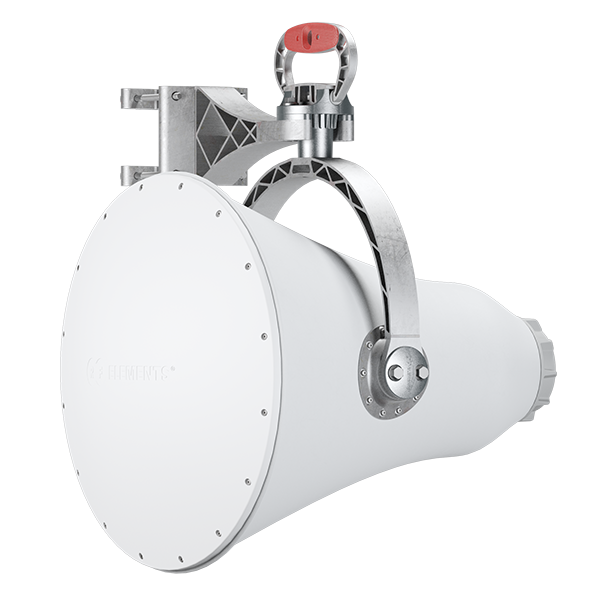

UH 5 24 Right

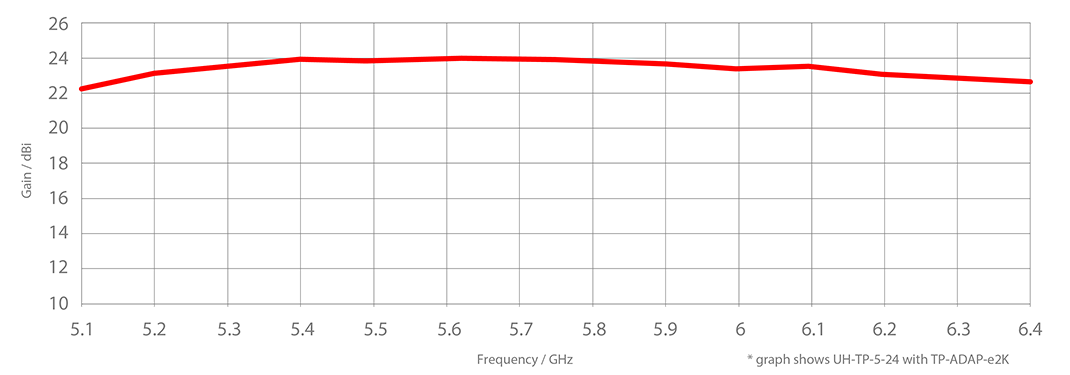

High Gain

UltraHorn™ TP antennas come with a surprisingly high gain: 24 dBi for UH-TP-5-24. In combination with narrow beamwidths and no side lobes, UltraHorn™ TP antennas bring amazing performance even when compared to higher gain competitive products.

High Gain UH TP v3

No Accessories Needed

UltraHorn™ TP antennas come as a complete antenna solution for a point-to-point link. T
