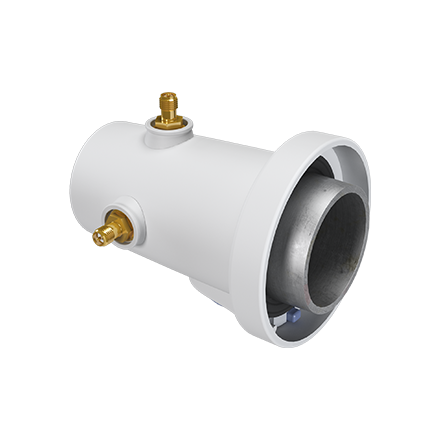

RP-SMA Coaxial Interface For StarterDish™ Antennas
SMA connects to StarterDish™ antennas and provides female RP-SMA
connectors - standard coaxial interface for any 3rd party
radios. STA-SMA has dual linear H+V polarization.
covers a wide spectrum of 5150 - 5950
MHz with VSWR well below 1.8
throughout the whole bandwidth.
STA-SMA is a waveguide-based adapter. Since waveguide has
near-zero loss, the adapter introduces practically zero attenuation
in the waveguide part. The transition from coaxial connectors to
waveguide feeder is optimized for minimum loss as well.
